Package Inspection Products

Image quality. Speed. Uptime. They’re all crucial. Getting all three at the same time in a nondestructive testing (NDT) solution for package inspection is the challenge. It takes continuous innovation, advancing the state of the art to keep pace with the semiconductor industry’s own exponential progress.

Package Inspection Products

Choose our ECHO scanning acoustic microscope for package inspection of stacked dies, complex flip chips and more traditional plastic packages. ECHO VS adds industry-leading features for the clearest imaging of Cu pillars, molded flip chip (MUF), CSP, MCM, stacked die, hybrids, and other advanced package inspection applications.

Echo

The ECHO scanning acoustic microscope is a nondestructive ultrasonic flaw detector designed to simplify testing, increase yield and maximize productivity in the lab or on the production floor.

See More >
Sonix_images_Echo_VS_1650x1100

Echo VS

The ECHO VS system adds our Image Enhancement Suite to the ECHO platform to provide industry-leading image quality and defect identification capabilities. It’s our most accurate ultrasonic NDT equipment for development labs and for production environments that require the highest precision. The Echo system can be fitted with an optional chuck for manual wafer inspection.

See More >

Ultrasonic Transducers

Sonix S-series ultrasonic NDT transducers are designed in-house to meet the demanding nondestructive testing requirements of semiconductor manufacturing. We offer the collaborative expertise to help customers choose the best ultrasonic NDT transducer for their application, based on three primary considerations.

See More >

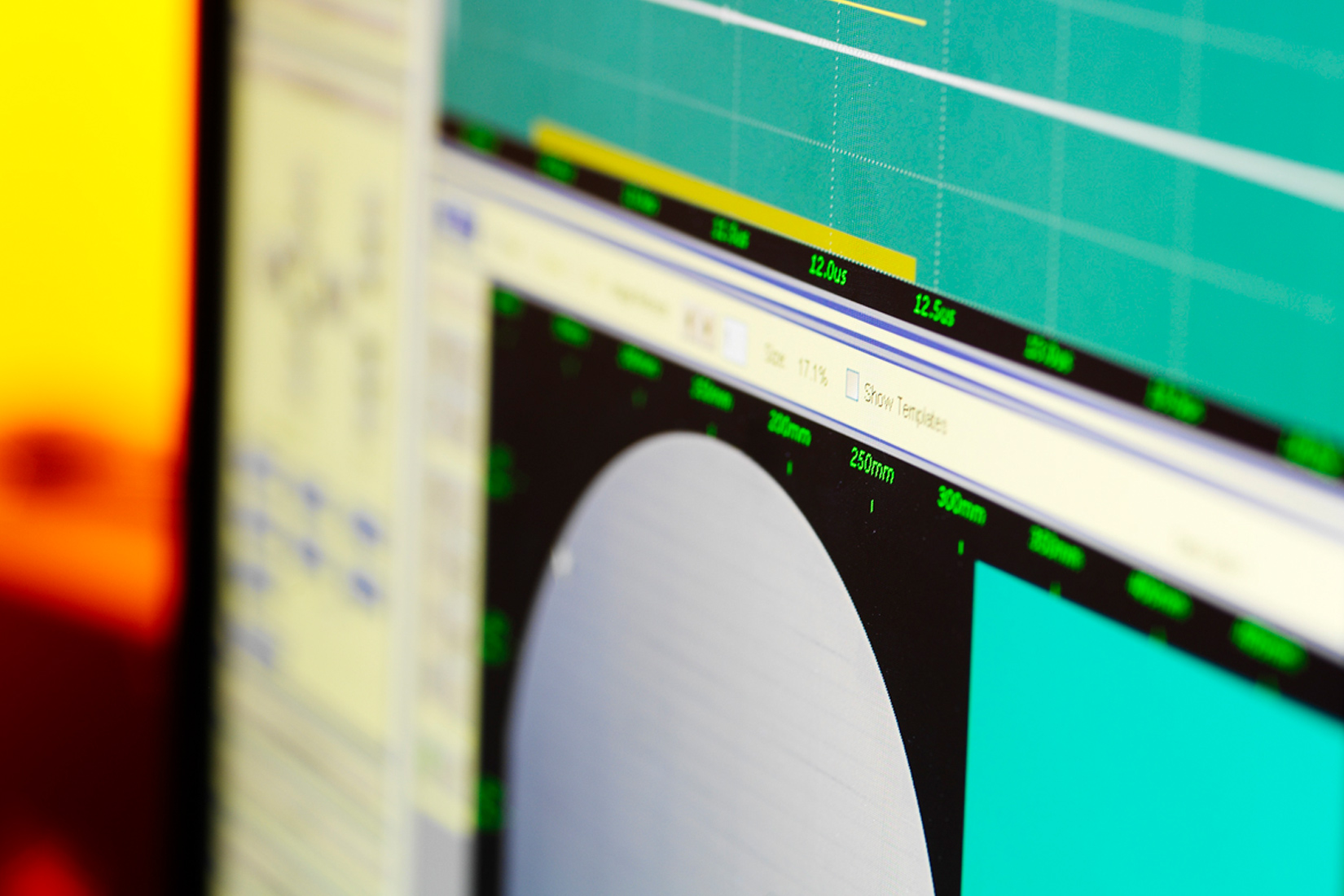

1.2.2._Prod_PI_SoftwareOptions_AutoWaferPro

Software Options

Sonix offers powerful microscopy analysis software to enhance packaged semiconductor imaging, accelerate production and adapt systems based on the ECHO platform to customer-specific requirements.

See More >
